Octagonal Lighting Pole Solar Panel

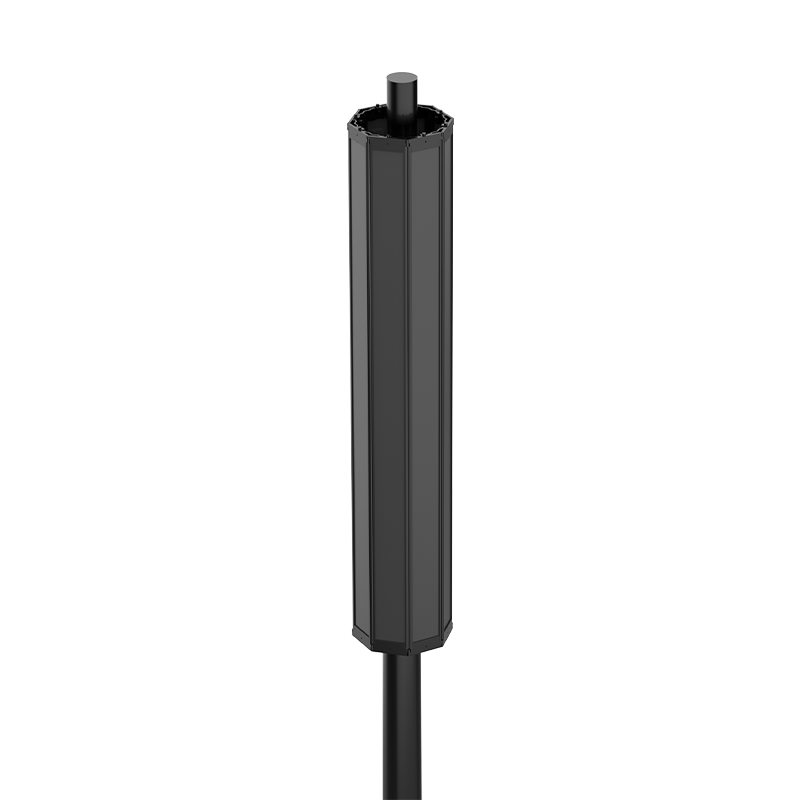

Forland Octagonal Lighting Pole Solar Panel is a foldable octagonal module designed for urban lighting poles where space is limited and aesthetics matter. It folds flat for transport, reducing packaging volume by over 50%, and unfolds on-site into a rigid octagonal cylinder that fits poles up to 255mm in diameter. Featuring monocrystalline silicon cells with 23.20% efficiency, it delivers 152W peak power with 18V/36V dual voltage options. The module is built with high-strength tempered glass and an aluminum frame offering corrosion and abrasion resistance, with IP66 waterproof rating, -20°C to +70°C operating temperature range, front 5400PA and back 2400PA mechanical load capacity, ±3% power tolerance, 5-year warranty, and over 20-year service life. Standard 2.5mm MC4 connectors are included for easy integration.

  • 01.Product Information
  • 02.Product Drawings
  • 03.Product Benefits
  • 04.Applications
  • 05.Company

The octagonal wrap-around structure keeps a large portion of the panel exposed to sunlight throughout the day, smoothing the charging curve and reducing reliance on peak noon sunlight. Its vertical posture allows dust to be washed away by rain and snow to slide off naturally, significantly reducing manual cleaning frequency. The cylindrical form also reduces wind resistance, simplifying pole-mounting requirements and lessening structural stress. These features make the FS-15208 a practical and low-maintenance energy solution for daily lighting needs.

Well-suited for garden bollards, medium-height streetlight columns, traffic sign poles, and residential lighting posts where pole diameters are within 255mm. Also ideal for park walkways, bicycle paths, and compact off-grid lighting installations that value straightforward installation and minimal upkeep.
