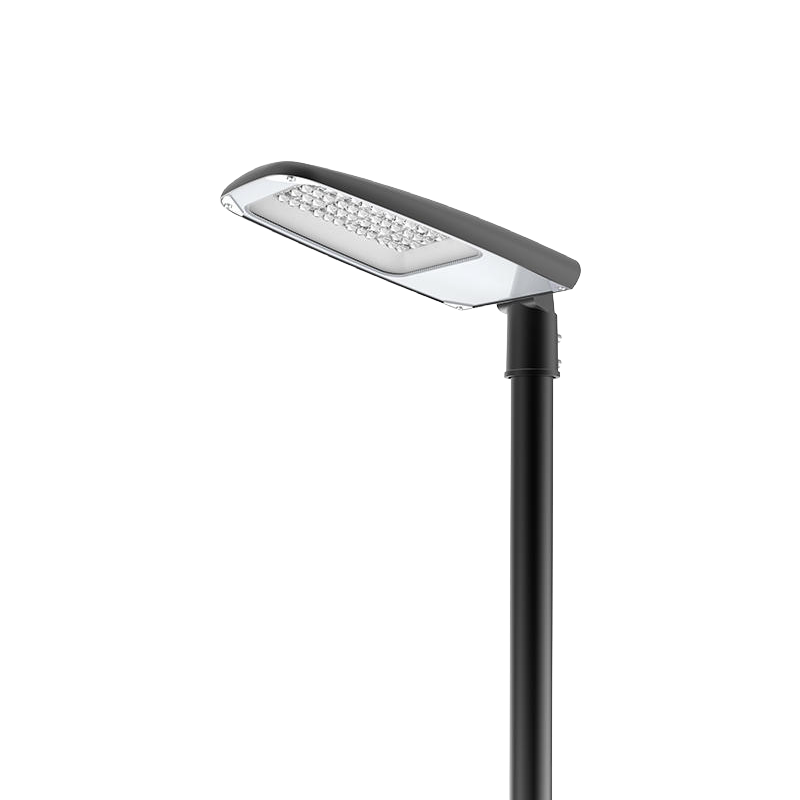

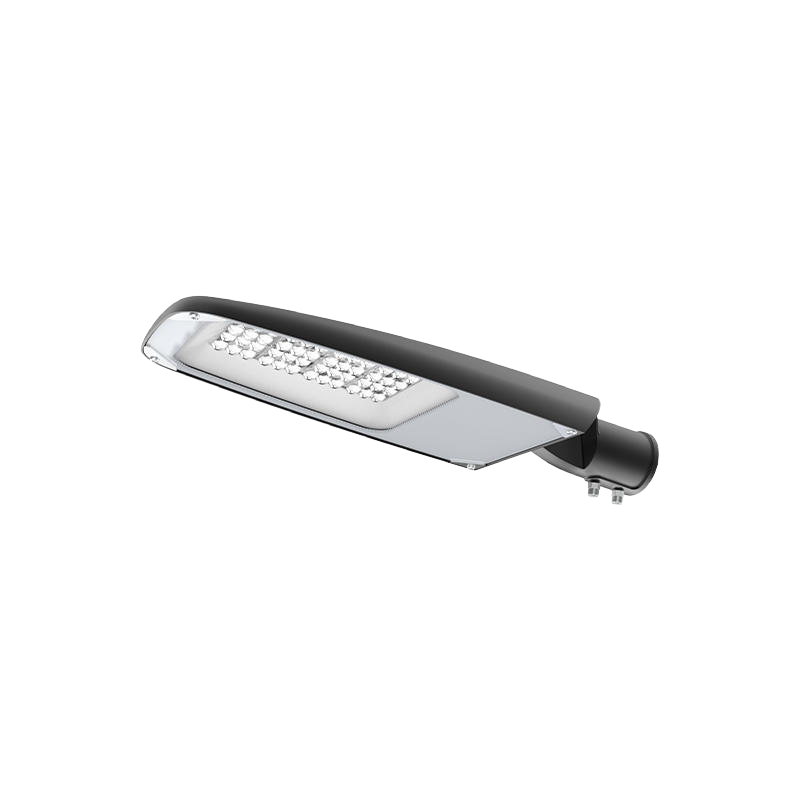

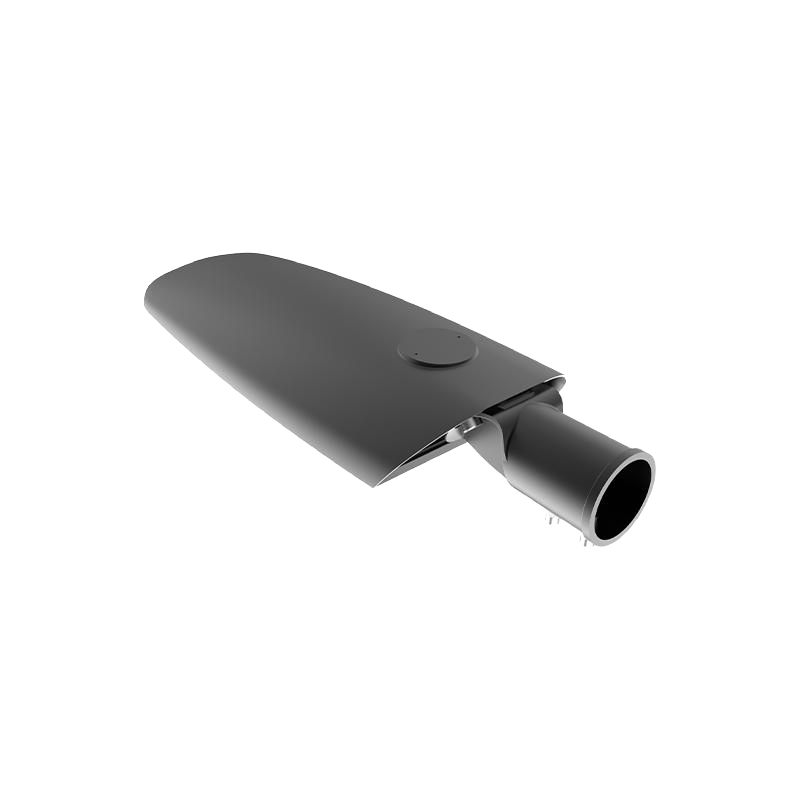

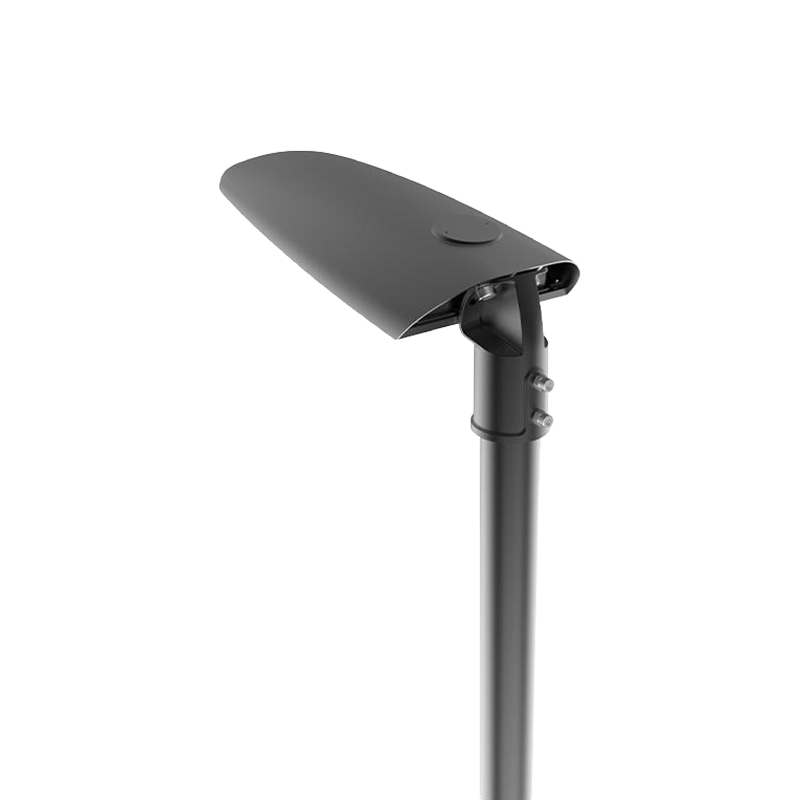

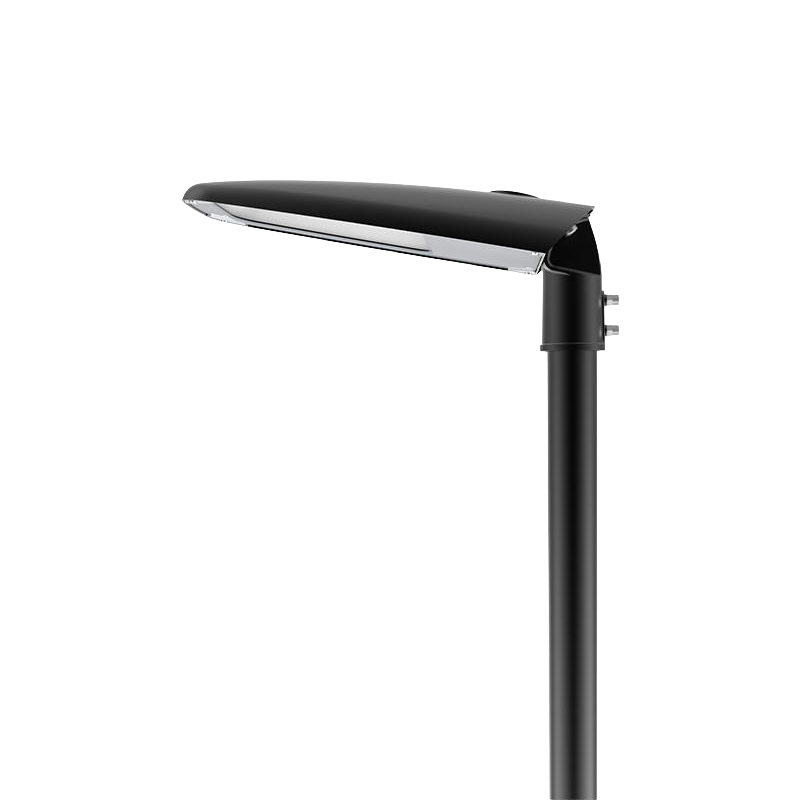

IP66 High-Efficacy LED Street Light

The Forland IP66 high-efficacy LED street light is designed for overseas municipal and roadway lighting projects, specifically for long-term, high-stability outdoor applications.
The luminaire features a lightweight, one-piece die-cast aluminum housing that balances structural strength with weight efficiency, facilitating easy transport and installation. Its surface coating offers enhanced UV and corrosion resistance, ensuring reliability across diverse and challenging climates.
Internally, a compartmentalized thermal management structure effectively lowers junction temperatures and minimizes lumen depreciation, ensuring consistent light output over the long term.
With an IP66 protection rating, the unit employs a highly sealed, isolated design separating the light source and power supply compartments to prevent the ingress of rain and dust, making it suitable for demanding outdoor environments. Its optical system utilizes lens-based light distribution to improve illumination uniformity while reducing dark spots and glare.
Equipped with a wide-voltage input driver system featuring lightning and short-circuit protection, the light is compatible with various national power grid standards. The mounting assembly features an adjustable bracket that supports multi-angle positioning, allowing for compatibility with a wide range of pole types and roadway configurations.

  • 01.Product Information
  • 02.Product Drawings
  • 03.Product Benefits
  • 04.Applications
  • 05.Company

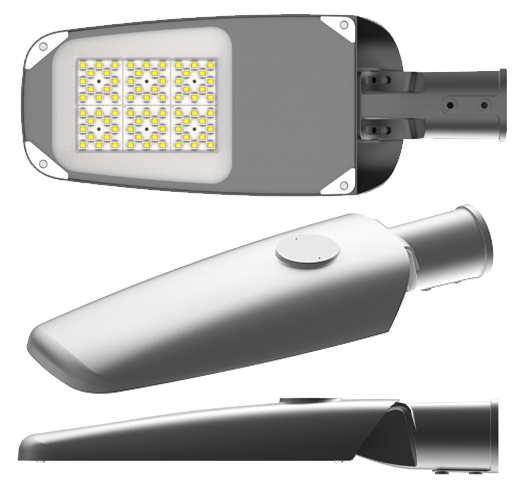

Indicators Specifiction parameter Picture
General Performance Power 50W
Luminous Flux @4000K 7000lm
Efficiency 140lm/W
CRI ≥70
Calculated Lumen Maintenance
(L79,TM-21@25℃)
>30000hours
Color Temperature 3000K-6000K
Optical Performance Distribution TYPE II
Light Distribution Component lens
Lamp LED5050
LED quantity 24pcs
Ulor 0.0%
Dlor 115.5%
Electrical Performance Input Voltage AC100-277V 50/60Hz Dimension
Driver Philips/Inventronics/Mean Well/others
THD <20%
Power Factor >0.95
Power-supply Efficiency >87%
Main Component Housing aluminum
Weight 2.5kg
Lens PC
Glass tempered glass
Spraying color Silver grey/flat white/brown/black
Reliability Performance Protection grade IP66
Shock grade IK08
Insulation Class class I
Corrosion-proof grade WF2
Operating Temperature -35-50℃
Humidity 10-90% RH
Surge Protection 6KV/4KV
Labels and Certifications /
Normative Framework GB7000、EN60598-1、EN62471、EN61547

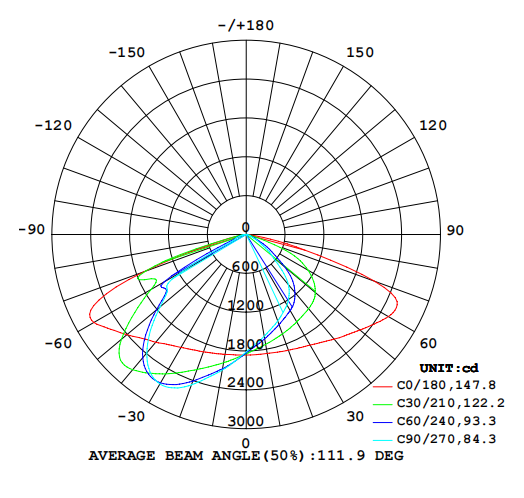

Warranty 5 years Distribution
Installation Applicable Place Courtyard, park, community, side road, main road
Mounting φ60mm,0°or 90°( Up and down 15 °)
Suitable Installation Height 2.5-6m

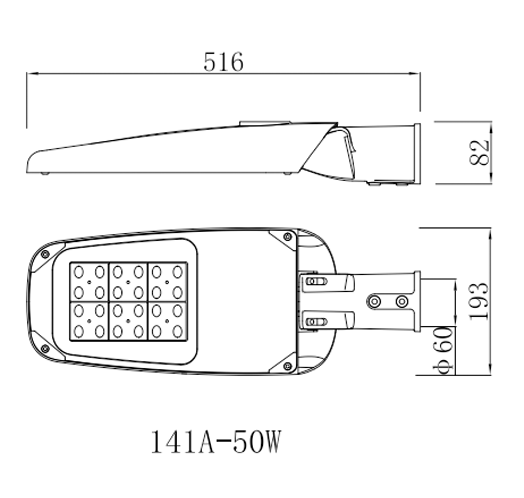

Dimension 516*193*82mm
Package Dimension 53*21*11CM
Maximum Exposed Surface 0.08㎡
Intelligent optional Control Optional
Photosell Optional
Motion Sensor null
Emergency null
SPD Optional
