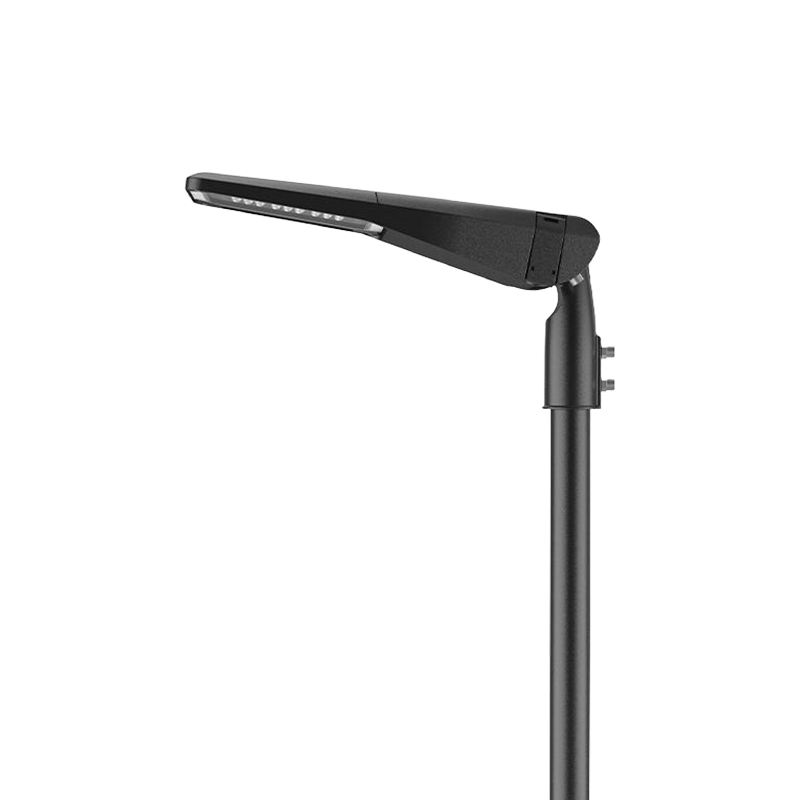

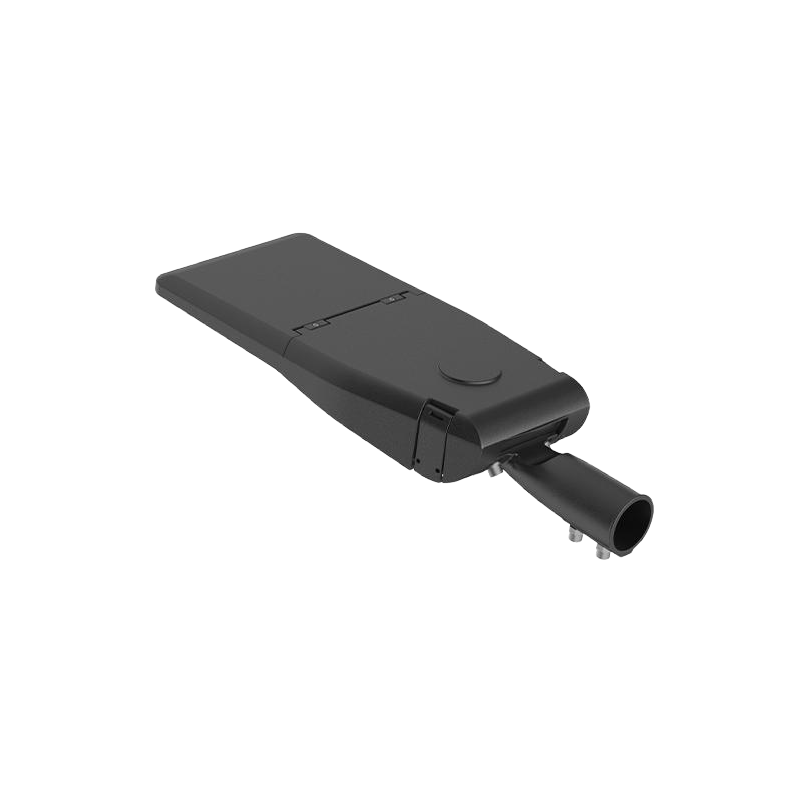

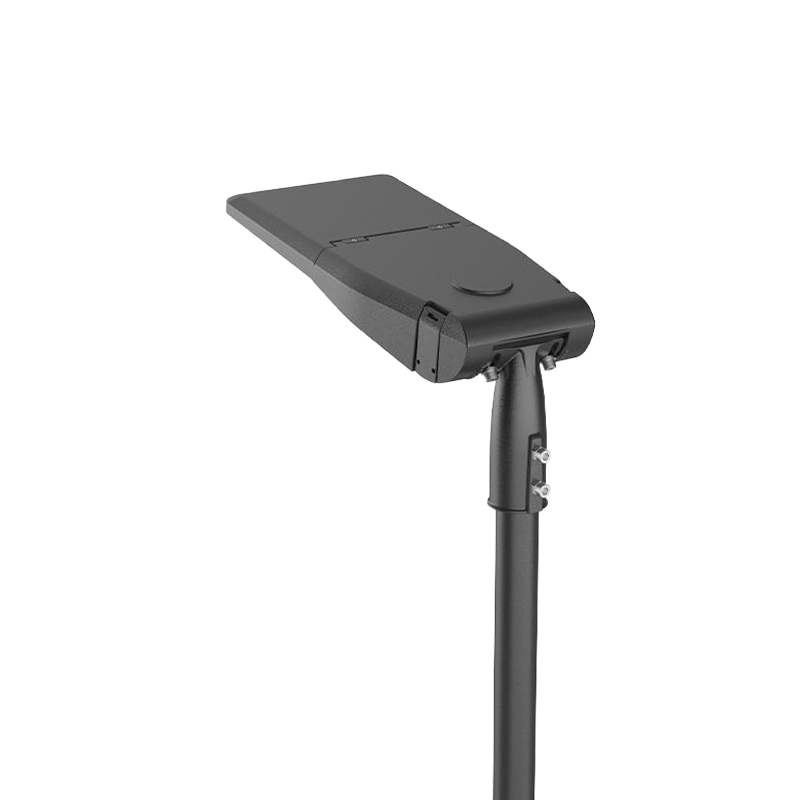

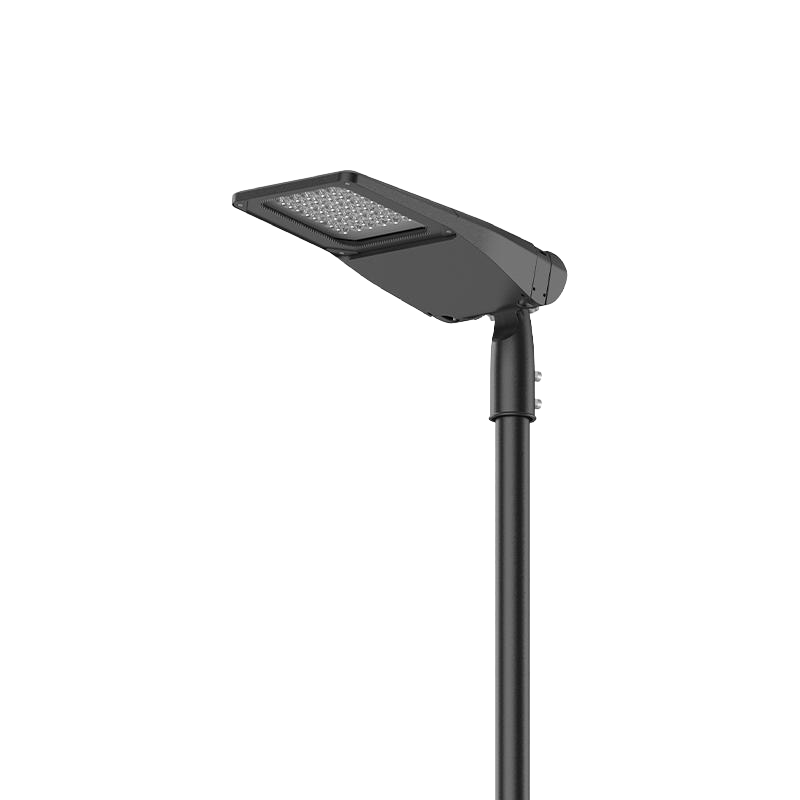

LED Street Light With Independent Power Supply Compartment

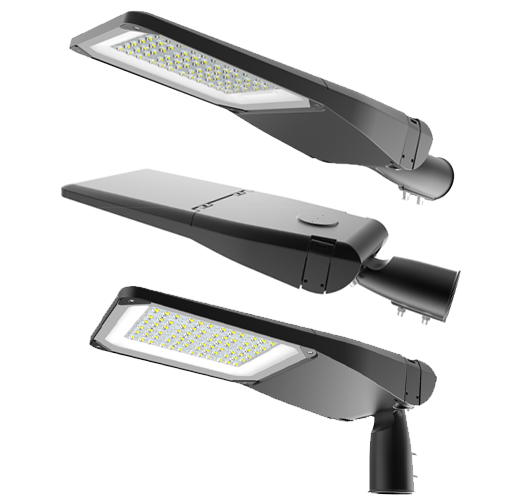

The Forland LED street light features a design with a separate power supply compartment, isolating the driver from the light source module. This structural separation clarifies the layout for maintenance and servicing, simplifying disassembly and reassembly, reducing maintenance complexity, and enhancing on-site operational efficiency.
With a luminous efficacy exceeding 155 lm/W, the fixture delivers excellent light output, meeting the brightness and energy-efficiency requirements for municipal roads and overseas lighting projects.
The structural design emphasizes a blend of modularity and practicality, keeping the power supply and light-emitting components relatively independent. This facilitates targeted troubleshooting for specific issues and minimizes the need for complete unit replacement, thereby streamlining long-term operation and maintenance.
Suitable for urban roads, industrial park roadways, township highways, and various outdoor public lighting applications, this product balances lighting performance with ease of maintenance, making it an ideal choice for projects that prioritize operational efficiency and cost-effective long-term upkeep.

  • 01.Product Information
  • 02.Product Drawings
  • 03.Product Benefits
  • 04.Applications
  • 05.Company
Indicators Specifiction parameter Picture
General Performance Power 200W
Luminous Flux
 @4000K
30000lm
Efficiency ≥150lm/W
CRI ≥70
Calculated Lumen Maintenance
(L79,TM-21@25℃)
>50000hours
Color Temperature 3000K-6000

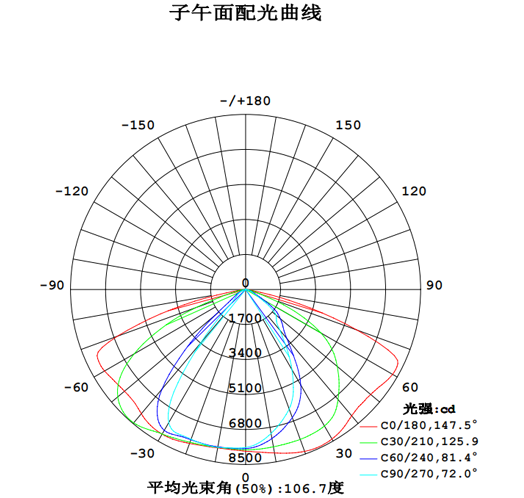

Optical Performance Distribution TYPE II
Light Distribution Component lens
Lamp LED5050
LED quantity 96pcs(5050)
Ulor 0.0%
Dlor 115.5% Dimension
Electrical Performance Input Voltage AC100-277V 50/60Hz
Driver Philips/Inventronics/Mean Well/Sosen
THD <10%
Power Factor ≥0.95@230Vac
Power-supply Efficiency ≥92%
Main Component Housing aluminum
Weight 5.2kg
Lens PC
Glass tempered glass
Spraying color Silver grey/flat white/brown/black
Reliability Performance Protection grade IP66
Shock grade IK08
Insulation Class class I
Corrosion-proof grade WF2 Distribution
Operating Temperature -35-50℃
Humidity 10-90% RH
Surge Protection 6KV/4KV
Labels and Certifications /
Normative Framework GB7000、EN60598-1、EN62471、EN61547
Warranty 5 years
Installation Applicable Place Courtyard, park, community, side road, main road
Mounting φ60mm,0°or 90°( Up and down 15 °)
Suitable Installation Height 5-12m

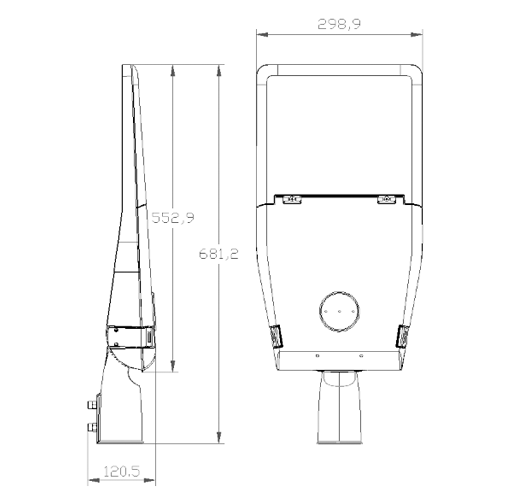

Dimension 681.2*299*120.5mm
Package Dimension 735x350x150mm
Maximum Exposed Surface 0.167㎡
Intelligent optional Extended control NEMA/Zhaga
Photosell optional
Motion Sensor null
Emergency null
SPD 10KV
