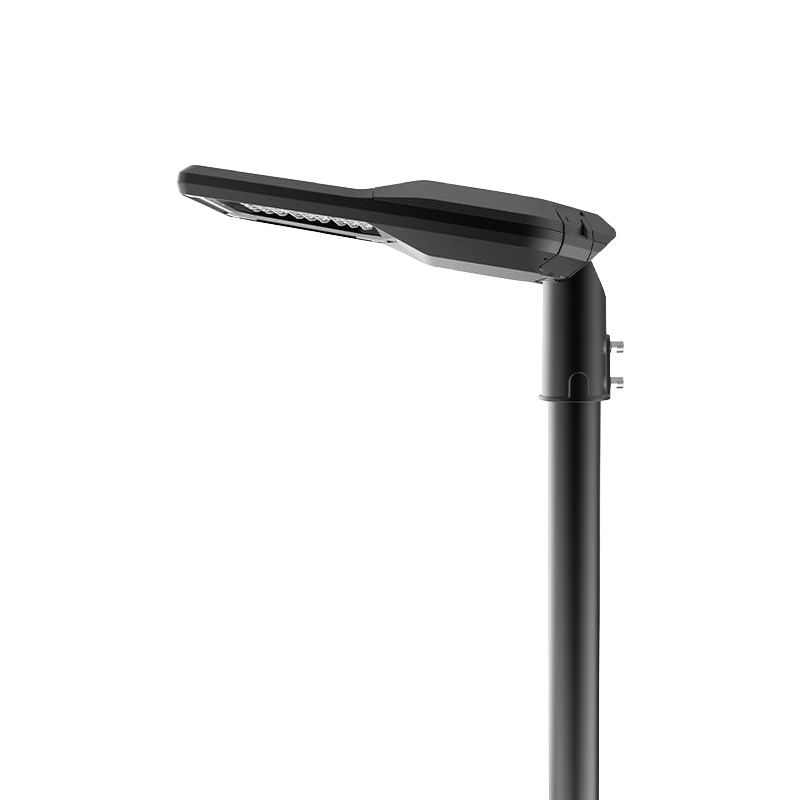

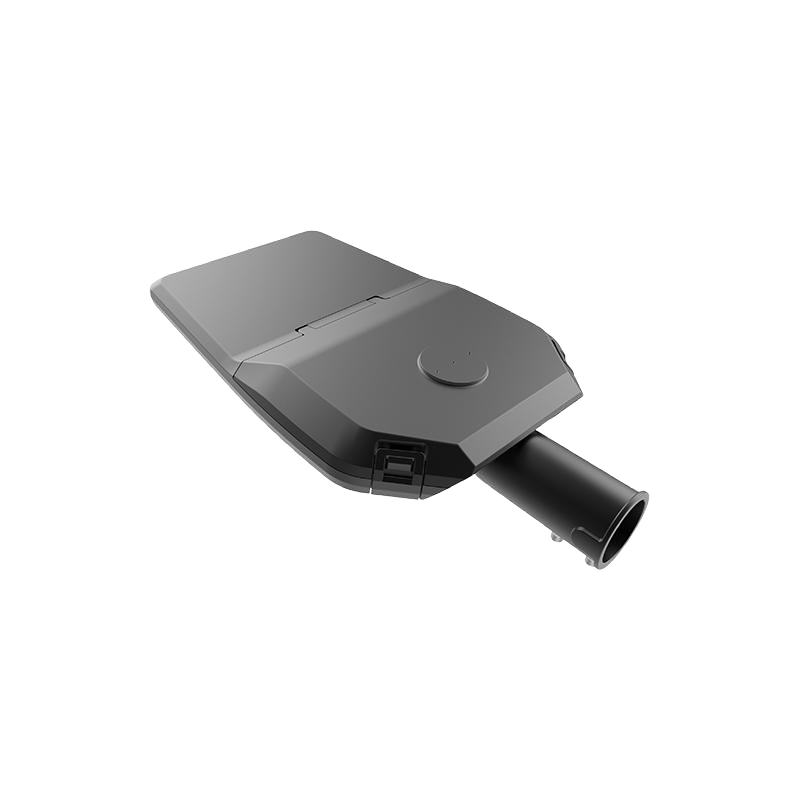

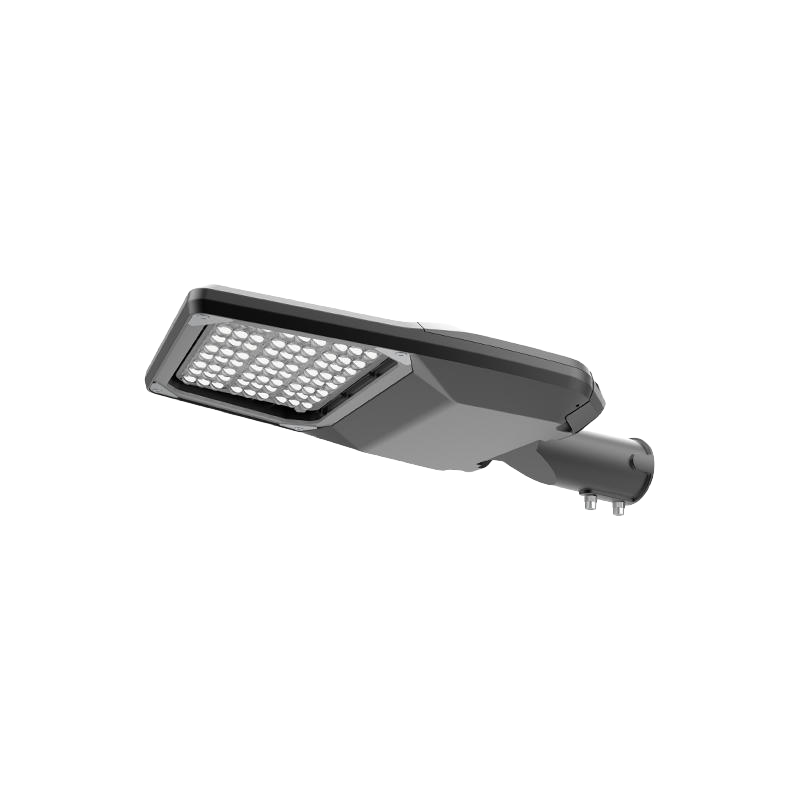

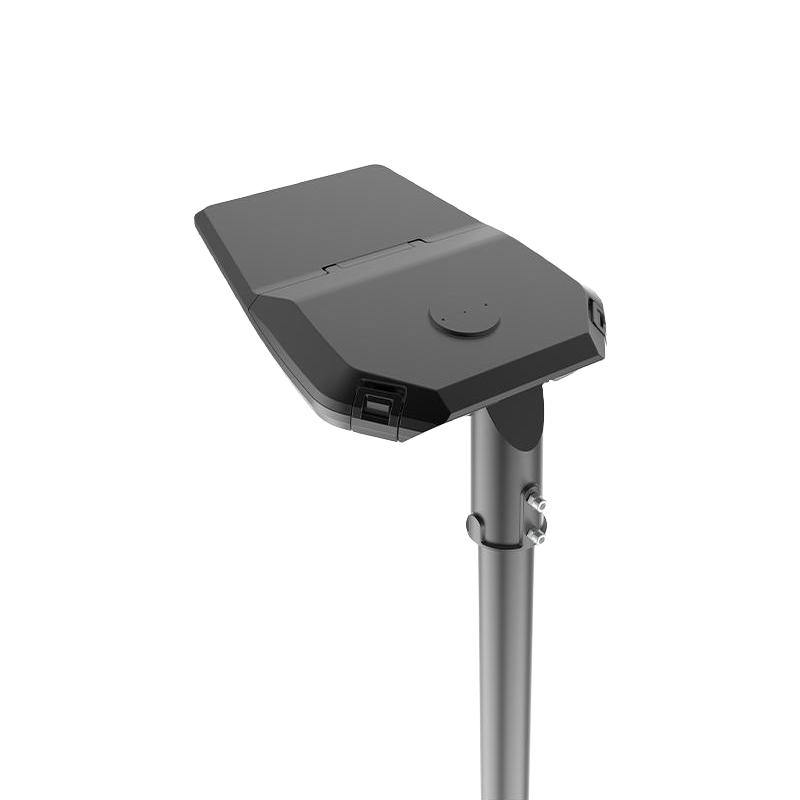

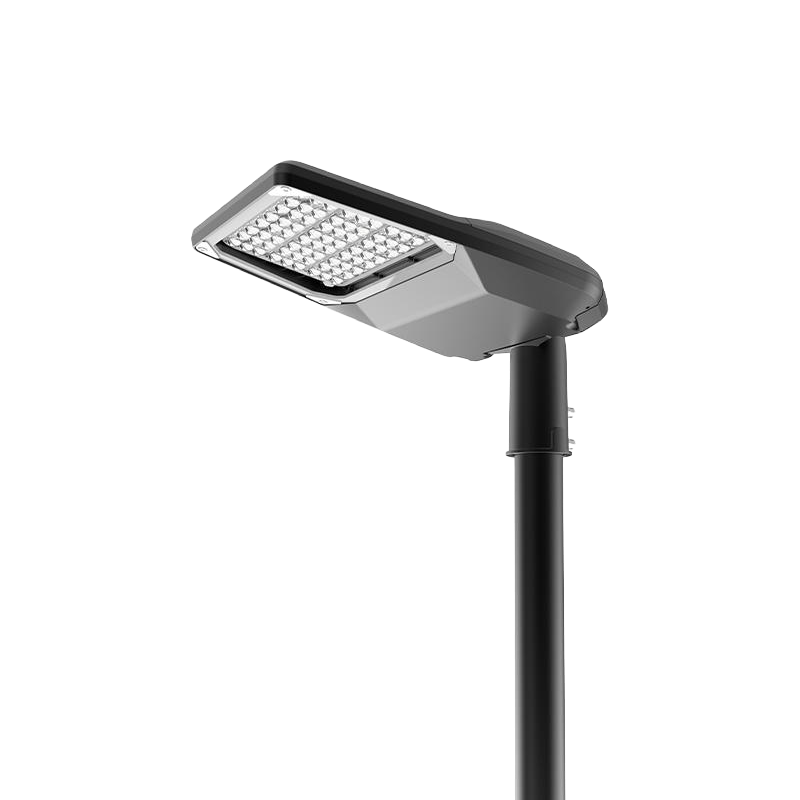

Snap-Fit ​​LED Street Light

Designed for overseas road lighting projects, the Forland snap-fit​LED street light features a tool-free, quick-release structure that facilitates on-site installation and maintenance, thereby boosting construction efficiency and making it ideal for large-scale project deployments.
The luminaire features an integrated die-cast aluminum housing with an IP66 protection rating, ensuring resilience against rain, dust, and harsh outdoor weather conditions for long-term, reliable operation.
It utilizes a high-efficacy LED module delivering a system luminous efficacy of approximately 140 lm/W with stable light output, helping to reduce overall energy consumption.
The structural design allows for adjustable luminaire tilt angles, enabling flexible light distribution based on road width and mounting height to optimize lighting performance.
The electrical system supports a wide input voltage range and offers optional smart control features—such as light sensing, dimming, and microwave motion sensing—to meet the requirements of smart road lighting systems.
With a light source lifespan of approximately 50,000 hours and a 5-year warranty, the product holds full CE and RoHS export certifications. Suitable for outdoor lighting projects in municipal areas, industrial parks, residential complexes, and scenic spots, it is a standard, high-demand model for bulk procurement.

  • 01.Product Information
  • 02.Product Drawings
  • 03.Product Benefits
  • 04.Applications
  • 05.Company

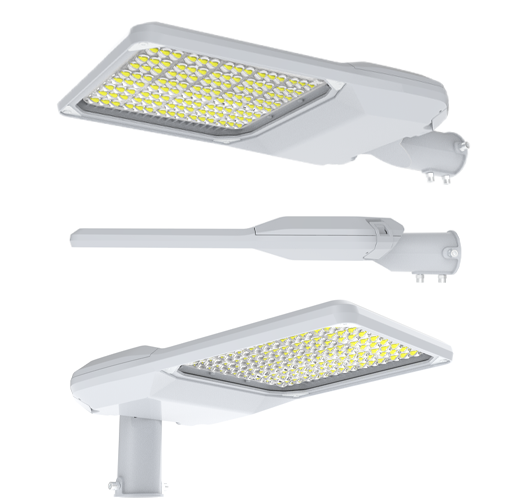

Indicators Specifiction parameter Picture
General Performance Power 200W
Luminous Flux
@4000K、90°
28000LM
Efficiency 140lm/W
CRI ≥70
Calculated Lumen Maintenance
(L79,TM-21@25℃)
>50000hours
Color Temperature 3000K-7000K
Optical Performance Distribution TI, TII
Light Distribution Component lens/Glass
Lamp XUYU
LED quantity 120PCS(5050)
Ulor 0.0%

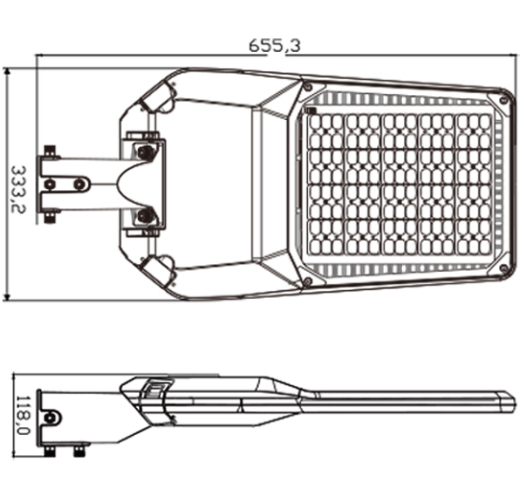

Dlor 100.0% Dimension
Electrical Performance Input Voltage AC100-277V 50/60Hz
Driver Sosen
THD <10%
Power Factor ≥0.95@230Vac
Power-supply Efficiency ≥90%
Main Component Housing aluminum
Weight 5.5kg
Lens PC
Glass tempered glass
Finish Flat white/brown/silver grey/black
Reliability Performance Protection grade IP66
Shock grade IK09
Insulation Class class I/II

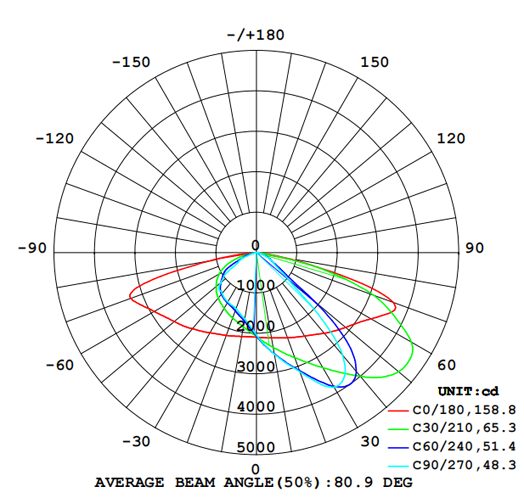

Corrosion-proof grade WF2 Distribution
Operating Temperature -30-50℃
Humidity 10-90% RH
Surge Protection 6KV/4KV
Labels and Cerifications CE
Normative Framework GB7000、EN60598-1、EN62471、EN61547
Warranty 5 years
Installation Applicable Place Courtyards, parks, communities, side roads, main roads
Mounting φ50/60mm,0°or 90°( Up and down 15°)
Suitable Installation Height 5-12m
Dimension 655.3*333.2*118mm
Package Dimension 690*370*150mm
Maximum Exposed Surface 0.22㎡
Intelligent optional Control Optional
Photosell Optional
Motion Sensor null
Emergency null
SPD 10KV
