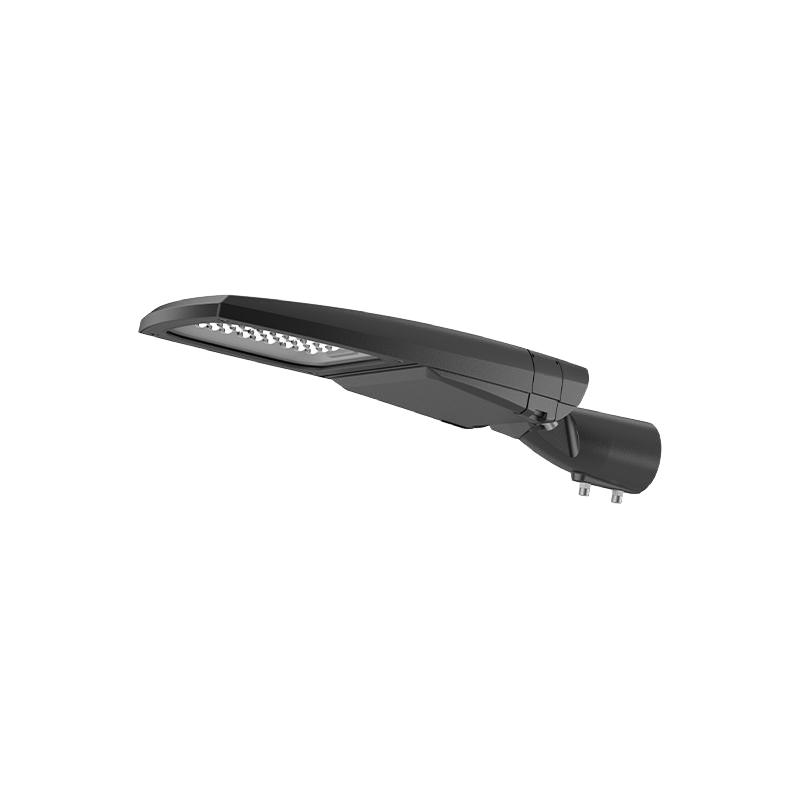

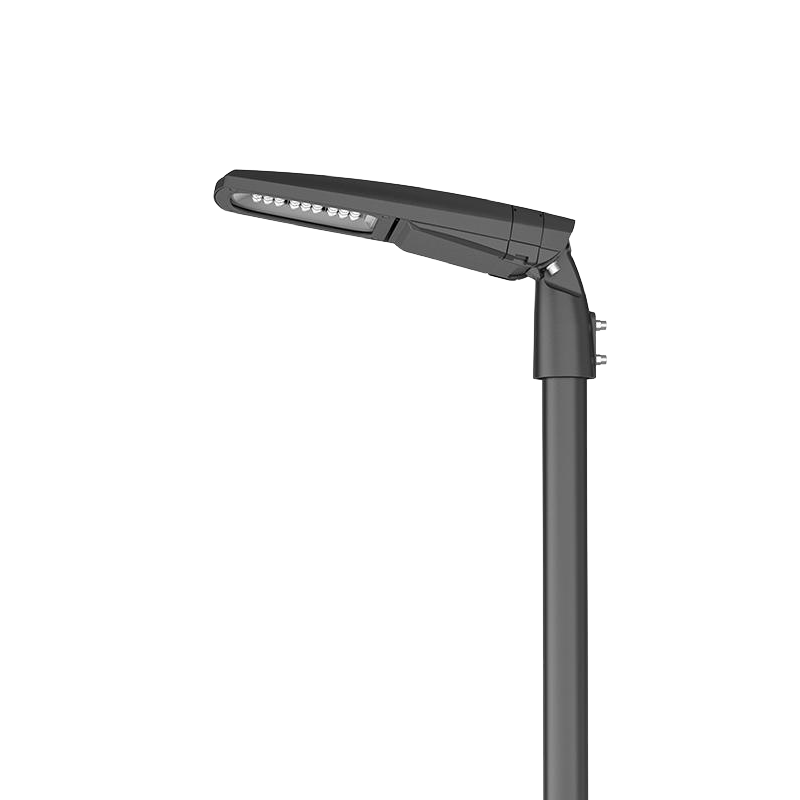

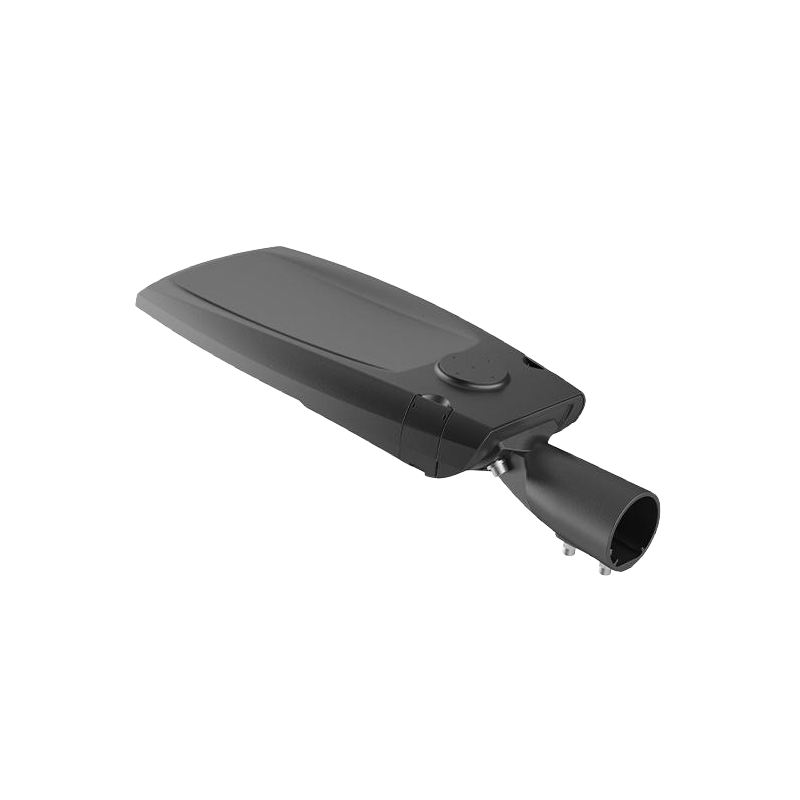

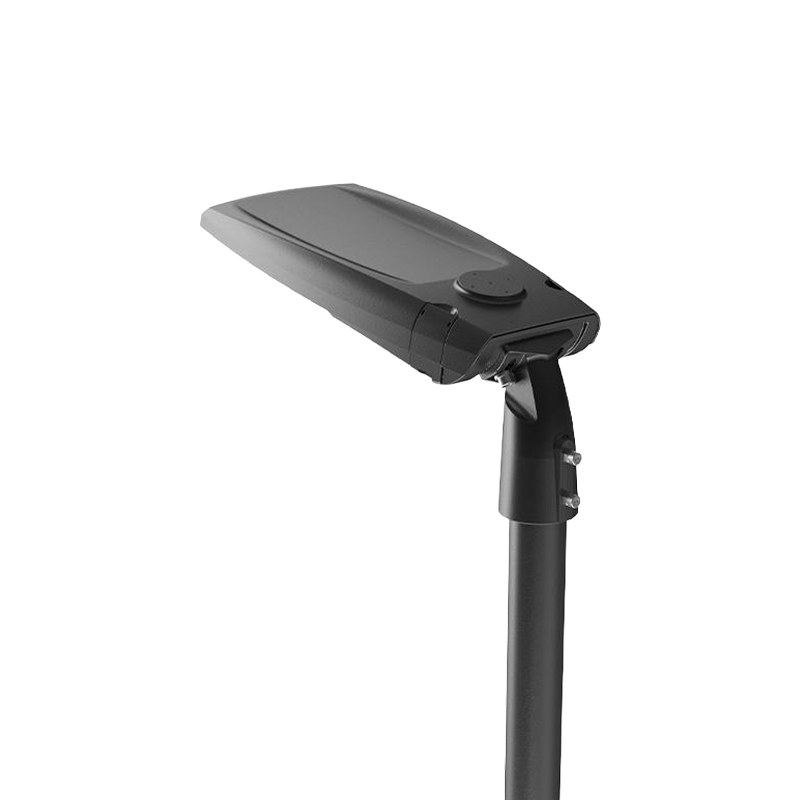

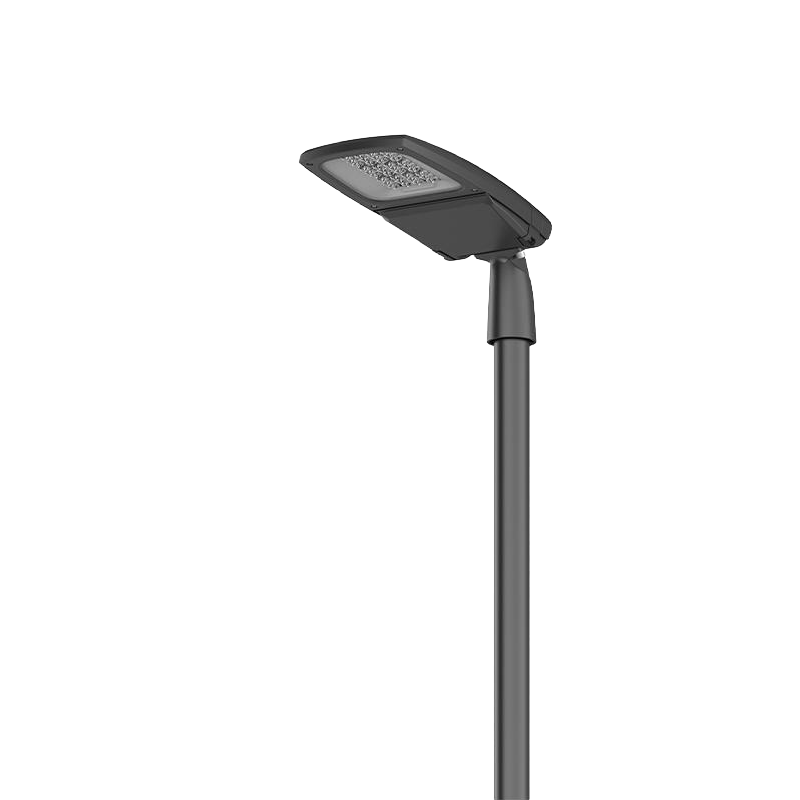

Compact Snap-Fit ​​LED Street Light

The Forland compact snap-fit ​​LED street light is designed for small-to-medium-scale overseas road lighting projects, prioritizing structural lightweighting and efficient mass deployment.
The fixture body optimizes overall weight while maintaining structural integrity, facilitating easier transport and rapid installation. Its tool-free, snap-fit ​​design simplifies on-site assembly and disassembly, enhancing construction convenience.

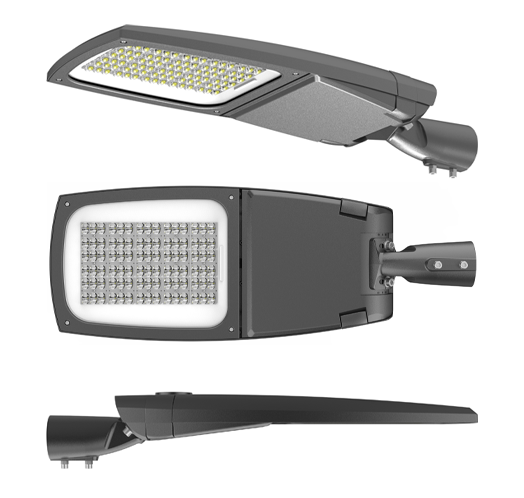

The light source features an array of 90 high-brightness LED chips combined with a precision lens design to ensure uniform light distribution. With a luminous efficacy of up to 150 lm/W, the fixture meets the brightness and energy-efficiency requirements for small-to-medium-power road lighting applications.
It boasts an IP66 protection rating, making it suitable for long-term outdoor operation.
The electrical system supports a wide input voltage range and includes an expansion interface for smart controls; optional features such as light sensing, dimming, and microwave motion sensing are available to meet the needs of various smart lighting projects.
Designed with a 50,000-hour light source lifespan and backed by a 5-year warranty, this product is an economical solution for compact road lighting, ideal for bulk project procurement and distribution channels.

  • 01.Product Information
  • 02.Product Drawings
  • 03.Product Benefits
  • 04.Applications
  • 05.Company
Indicators Specifiction Parameter Picture
General Performance Power 160W
Luminous Flux
@4000K、90°
24000LM
Efficiency 150lm/W
CRI ≥70
Calculated Lumen Maintenance
(L79,TM-21@25℃)
>50000hours
Color Temperature 5700K
Optical Performance Distribution TII
Light Distribution Component lens/Glass
Lamp HL 5050
LED quantity 90PCS(5050)
Ulor 0.0%
Dlor 100.0% Dimension
Electrical Performance Input Voltage AC100-277V 50/60Hz
Driver Sosen
THD <10%
Power Factor ≥0.95@230Vac
Power-supply Efficiency ≥90%
Main Component Housing Aluminum
Weight 8.5kg
Lens PC
Glass Tempered glass
Finish Silver grey
Reliability Performance Protection grade IP66
Shock grade IK08
Insulation Class class I/II

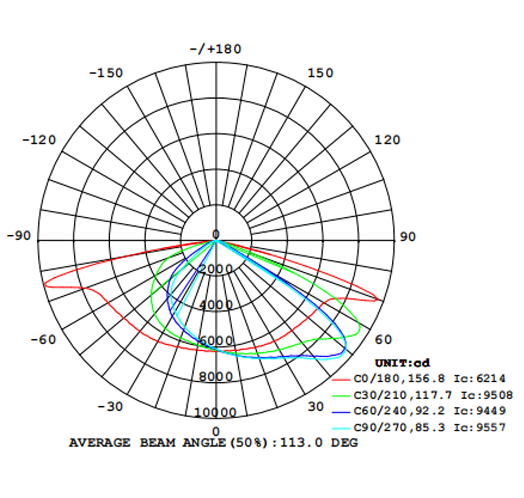

Corrosion-proof grade WF2 Distribution
Operating Temperature -30-50℃
Humidity 10-90% RH
Surge Protection 6KV/6KV
Labels and Certifications CE
Normative Framework GB7000、EN60598-1、EN62471、EN61547
Warranty 5 years
Installation Applicable Place Courtyards, parks, communities, side roads, main roads
Mounting φ50/60mm,0°or 90°( Up and down 15°)
Suitable Installation Height 6-12m

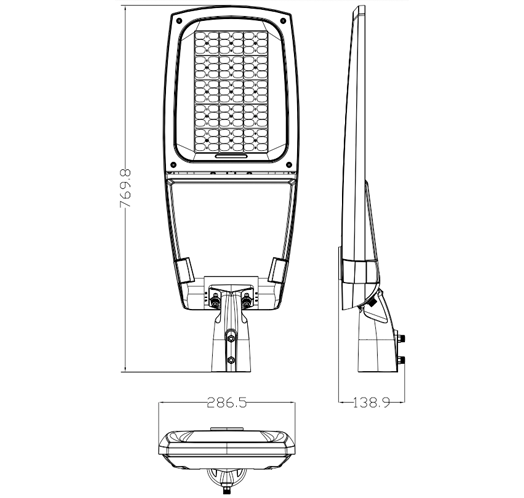

Dimension 769.8*286.5*138.9mm
Package Dimension /
Maximum Exposed Surface 0.185㎡
Intelligent optional Control Optional
Photosell Optional
Motion Sensor null
Emergency null
SPD 10KV
