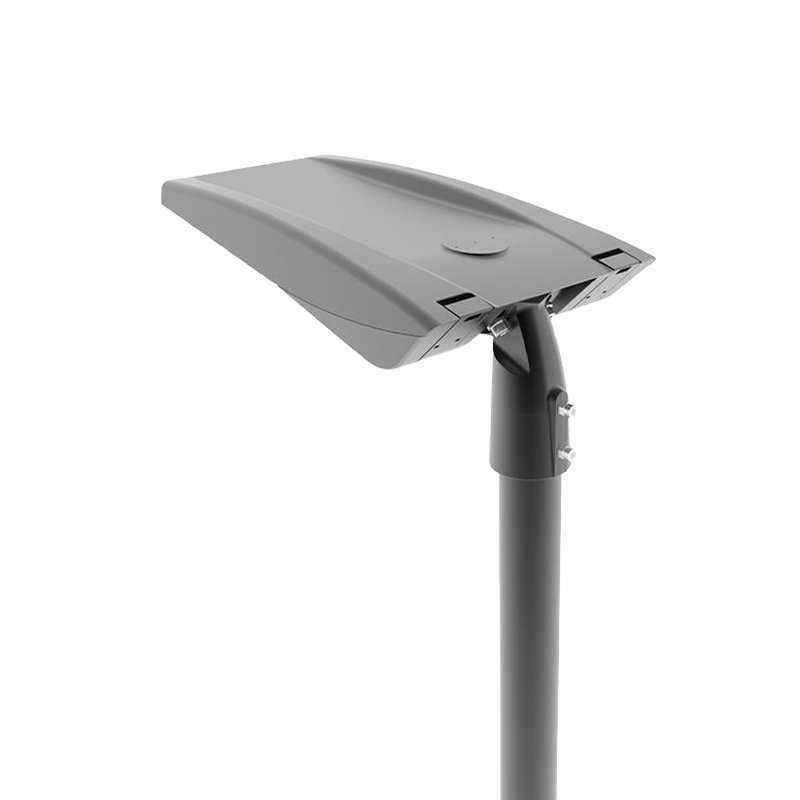

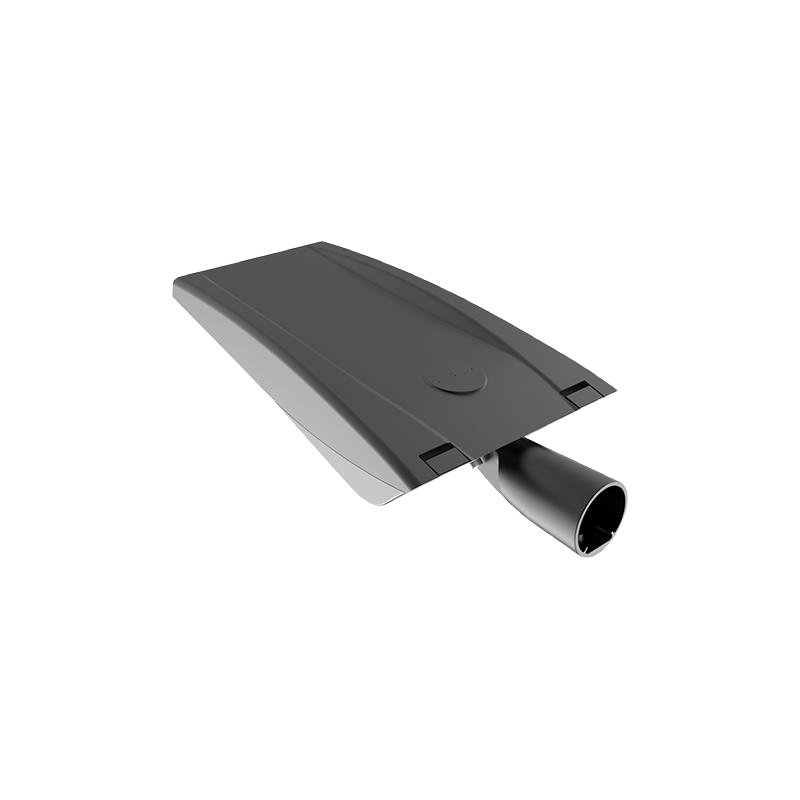

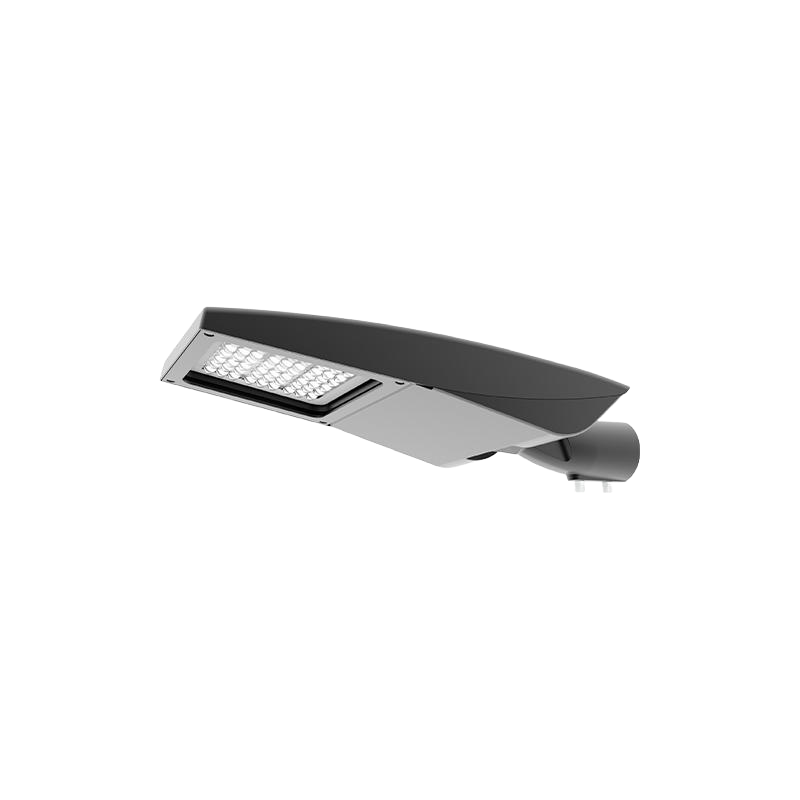

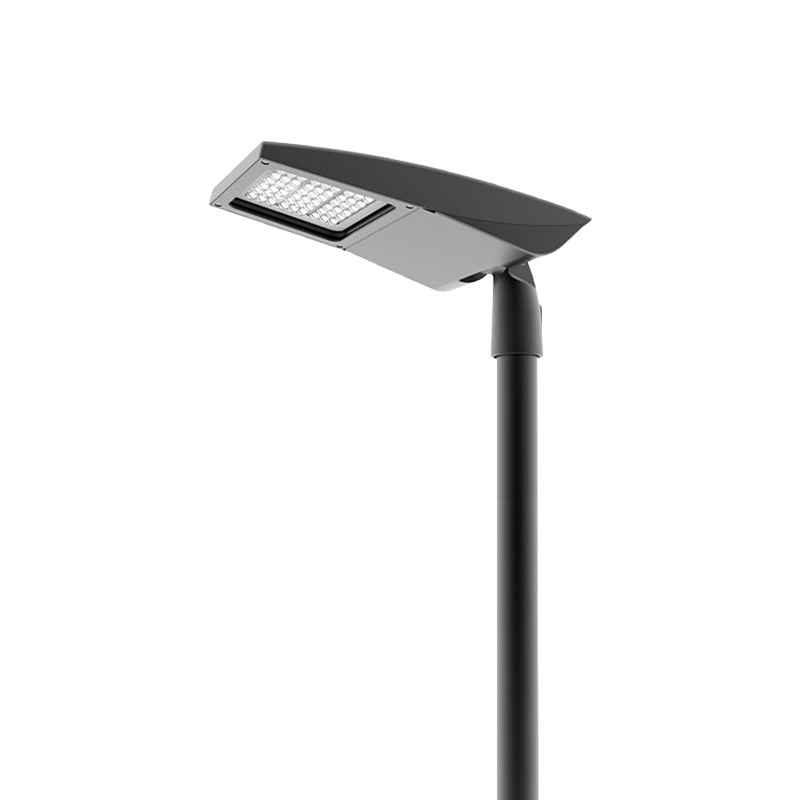

Smart-Controlled Municipal LED Streetlights

The Forland smart-control municipal LED street light is designed for overseas municipal road and infrastructure lighting projects. It features a modular structure that prioritizes structural reliability and long-term operational stability.
The streamlined housing design minimizes wind resistance and wind load, enhancing structural adaptability in complex outdoor environments. The unit employs a highly sealed cavity design with an IP66 protection rating, effectively withstanding rain, dust, and various corrosive outdoor conditions.
The optical system utilizes high-specification LED modules, achieving a system luminous efficacy of up to 160 lm/W. This ensures high energy efficiency while delivering uniform road illumination and maintaining stable long-term light output with minimal lumen depreciation.
The driver system includes essential electrical protections—such as over-voltage, short-circuit, and surge protection—and supports wide-voltage power grids, ensuring compatibility across diverse international markets.
The product supports various installation methods and control options; the light projection angle is adjustable, and the unit is compatible with standard pole specifications. Optional smart lighting features include 0-10V dimming, light-sensing control, and microwave motion sensing.
This product is suitable for applications such as urban and rural road lighting, secondary roads within industrial or business parks, parking lots, and landscaped walkways.

  • 01.Product Information
  • 02.Product Drawings
  • 03.Product Benefits
  • 04.Applications
  • 05.Company
Electrical Data
Nominal Voltage AC 100–240V/277V 50/60Hz SPD 10KV (Default)/20KV (available on request)
LED Lumileds; Other brands on request Optics Type II, Type III, Asymmetric for pedestrian crossings
Driver Inventronics; Other brands on request CRI Ra>70 (Default)/Ra>80
Power Factor (PF) >0.95 CCT 1800K, 2200K, 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
THD <15
General Data
Impact resistance IK08 Type of protection IP66
Housing Color Gray-RAL9007(Default) / Other Colors on request Mounting Type Side entry or Vertical pole mounted
Cover Material Tempered glass Protection Class Class I (Default) / Class II
Lens Material UV-resistant Polycarbonate Luminaire efficacy Up to 160 lm/w
Working Environment -40 ℃\+50 ℃, 10%\90%RH Lifetime >100,000 hours
Dimmable 1-10V Dimming (Default) / Timer Dimming / DALI Dimming
Certifications & Standards CE, RoHS, ENEC, ENEC+, CB, LM79, LM80, TM-21, IEC62471, IEC60068-2-6, IEC61643-11, Zhaga-D4i
Available on request NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, Knife switch, NTC, OLC, Solar Compatible, Smart Controller
FLED158 A
FLED158 B
FLED158 C FLED158 D
Model No Fixture Dimension(mm) Nominal Wattage Efficiency Lumen
F-LED158 A 585x253x132 30W/50W/60W 160lm/w 4800lm/8000lm/9600lm
F-LED158 B 601x313x132 80W/100W/120W 160lm/w 12800lm/16000lm/19200lm
F-LED158 C 671x333x132 150W/160W 160lm/w 24000lm/25600lm
F-LED158 D 721x333x132 180W/200W 160lm/w 28800lm/32000lm
